Mass-producible plastic bearings with wide-range applications

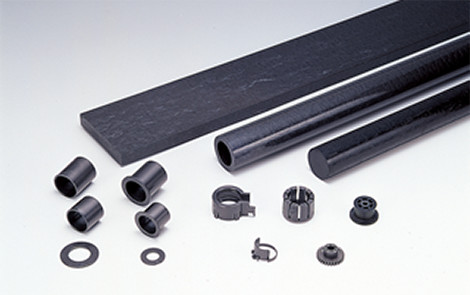

The Oiles 80 series are self-lubricating bearings made of polyacetal in which lubricating oil and special filler are distributed uniformly.

Service Range
Lubrication conditions	Dry
Service temperature range(ºF)	-40 ~ +176
Allowable max. contact pressure: P (N/mm2)	17.5
Allowable max. velocity: V (m/s)	0.85
Allowable max. PV value (N/mm2・m/s)	2.45

■ Serviceable without the need of lubrication. Features superior load resistance and wear resistance.
■ Low coefficient of friction and superior speed characteristics.
■ Prevents stick slip and squeak noises.
■ Injection-molded and can be made in complicated shapes. Has good mass productivity.
■ Standard products and materials for machining are available in various sizes.

Various standard products are available. Use the following links to check model numbers (according to approximate dimensions).
* Please note that some items may not be listed. Refer to the electronic catalog for more information.

Oiles 80 Bushings 80B

Oiles 80 Flange Bushings 80F

Oiles 80 Washer 80W
