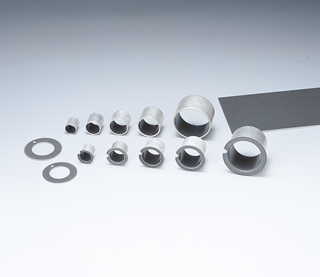

Oiles Drymet LF

Polytetrafluoroethylene plastic multi-layer bearings with back metals

Available in Metric and Inch sizes

  • Standard Products
  • Material Products
  • Custom-made Products
  • ROHS
  • ELV
  • non pb

Demonstrates superior friction performance under high load conditions.

The Oiles Drymet LF series are self-lubricating bearings composed of three layers:Polytetrafluoroethylene plastic layers with fillers, sintered bronze layers, and back metals.

Service Range
Lubrication conditions Dry
Service temperature Range(ºF) -328 ~ +536
Allowable max. contact pressure: P (N/mm2) 49.0
Allowable max. velocity: V(m/s) 0.65
Allowable max. PV value (N/mm2・m/s) 3.60

Feature

■ Serviceable without the need for lubrication. Thin and lightweight for compact design.
■ Demonstrates low coefficient of friction and superior load performance under high-load, low-speed conditions.
■ Usable at the PV values even in the middle- and high-speed zones when lubricated.
■ Usable in wide temperature ranges from low to high temperatures. Has superior chemical resistance.
■ Features superior dimensional stability, mechanical strength, and thermal conductivity.
■ The 0.5 mm thin standard LFCF products are also available for space saving.

Standard Products

Various standard products are available. Use the following links to check model numbers (according to approximate dimensions).
* Please note that some items may not be listed. Refer to the electronic catalog for more information.
