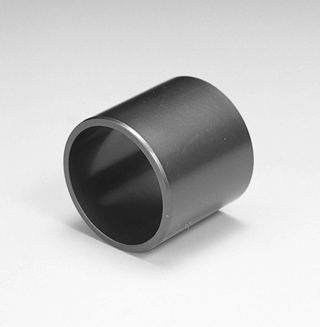

Oiles 80 Bushings 80B
(Examples) I.D. is 15mm and length is 10mm.
80B - 1510

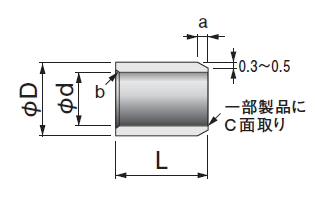

| OILES 80 Bushings | I.D.: Φd | O.D.: ΦD | Length: L |
|---|---|---|---|
| 80B-0202 | 2 | 4 | 2 |
| 80B-0203 | 2 | 4 | 3 |
| 80B-0204 | 2 | 4 | 4 |
| 80B-0303 | 3 | 5 | 3 |
| 80B-0304 | 3 | 5 | 4 |
| 80B-0305 | 3 | 5 | 5 |
| 80B-0306 | 3 | 5 | 6 |
| 80B-0403 | 4 | 6 | 3 |
| 80B-0404 | 4 | 6 | 4 |
| 80B-0405 | 4 | 6 | 5 |
| 80B-0406 | 4 | 6 | 6 |
| 80B-0503 | 5 | 7 | 3 |
| 80B-0504 | 5 | 7 | 4 |
| 80B-0505 | 5 | 7 | 5 |
| 80B-0506 | 5 | 7 | 6 |
| 80B-0508 | 5 | 7 | 8 |
| 80B-0604 | 6 | 8 | 4 |
| 80B-0605 | 6 | 8 | 5 |
| 80B-0606 | 6 | 8 | 6 |
| 80B-0608 | 6 | 8 | 8 |
| 80B-0610 | 6 | 8 | 10 |
| 80B-0705 | 7 | 9 | 5 |
| 80B-0706 | 7 | 9 | 6 |
| 80B-0708 | 7 | 9 | 8 |
| 80B-0710 | 7 | 9 | 10 |
| 80B-0805 | 8 | 10 | 5 |
| 80B-0806 | 8 | 10 | 6 |
| 80B-0808 | 8 | 10 | 8 |
| 80B-0810 | 8 | 10 | 10 |
| 80B-0812 | 8 | 10 | 12 |
| 80B-0815 | 8 | 10 | 15 |
| 80B-0905 | 9 | 11 | 5 |
| 80B-0906 | 9 | 11 | 6 |
| 80B-0910 | 9 | 11 | 10 |
| 80B-0912 | 9 | 11 | 12 |
| 80B-0915 | 9 | 11 | 15 |
| 80B-1005 | 10 | 12 | 5 |
| 80B-1006 | 10 | 12 | 6 |
| 80B-1008 | 10 | 12 | 8 |
| 80B-1010 | 10 | 12 | 10 |
| 80B-1012 | 10 | 12 | 12 |
| 80B-1015 | 10 | 12 | 15 |
| 80B-1020 | 10 | 12 | 20 |
| 80B-1206 | 12 | 14 | 6 |
| 80B-1208 | 12 | 14 | 8 |
| 80B-1210 | 12 | 14 | 10 |
| 80B-1212 | 12 | 14 | 12 |
| 80B-1215 | 12 | 14 | 15 |
| 80B-1220 | 12 | 14 | 20 |
| 80B-1410 | 14 | 16 | 10 |
| 80B-1412 | 14 | 16 | 12 |
| 80B-1415 | 14 | 16 | 15 |
| 80B-1420 | 14 | 16 | 20 |
| 80B-1510 | 15 | 17 | 10 |
| 80B-1512 | 15 | 17 | 12 |
| 80B-1515 | 15 | 17 | 15 |
| 80B-1520 | 15 | 17 | 20 |
| 80B-1525 | 15 | 17 | 25 |
| 80B-1530 | 15 | 17 | 30 |
| 80B-1610 | 16 | 18 | 10 |
| 80B-1612 | 16 | 18 | 12 |
| 80B-1615 | 16 | 18 | 15 |
| 80B-1620 | 16 | 18 | 20 |
| 80B-1625 | 16 | 18 | 25 |
| 80B-1630 | 16 | 18 | 30 |
| 80B-1810 | 18 | 20 | 10 |
| 80B-1812 | 18 | 20 | 12 |
| 80B-1815 | 18 | 20 | 15 |
| 80B-1820 | 18 | 20 | 20 |
| 80B-1825 | 18 | 20 | 25 |
| 80B-1830 | 18 | 20 | 30 |
| 80B-2015 | 20 | 23 | 15 |
| 80B-2020 | 20 | 23 | 20 |
| 80B-2025 | 20 | 23 | 25 |
| 80B-2030 | 20 | 23 | 30 |
| 80B-2220 | 22 | 25 | 20 |
| 80B-2230 | 22 | 25 | 30 |
| 80B-2415 | 24 | 27 | 15 |
| 80B-2420 | 24 | 27 | 20 |
| 80B-2425 | 24 | 27 | 25 |
| 80B-2515 | 25 | 28 | 15 |
| 80B-2520 | 25 | 28 | 20 |
| 80B-2525 | 25 | 28 | 25 |
| 80B-2530 | 25 | 28 | 30 |
| 80B-2820 | 28 | 32 | 20 |
| 80B-2825 | 28 | 32 | 25 |
| 80B-2830 | 28 | 32 | 30 |
| 80B-3020 | 30 | 34 | 20 |
| 80B-3025 | 30 | 34 | 25 |
| 80B-3030 | 30 | 34 | 30 |
| 80B-3040 | 30 | 34 | 40 |
| 80B-3220 | 32 | 36 | 20 |
| 80B-3230 | 32 | 36 | 30 |
| 80B-3240 | 32 | 36 | 40 |
| 80B-3520 | 35 | 39 | 20 |
| 80B-3525 | 35 | 39 | 25 |
| 80B-3530 | 35 | 39 | 30 |
| 80B-3540 | 35 | 39 | 40 |
| 80B-3820 | 38 | 42 | 20 |
| 80B-3830 | 38 | 42 | 30 |
| 80B-3840 | 38 | 42 | 40 |
| 80B-4020 | 40 | 44 | 20 |
| 80B-4025 | 40 | 44 | 25 |
| 80B-4030 | 40 | 44 | 30 |
| 80B-4040 | 40 | 44 | 40 |
| 80B-4050 | 40 | 44 | 50 |
| 80B-4520 | 45 | 50 | 20 |
| 80B-4530 | 45 | 50 | 30 |
| 80B-4540 | 45 | 50 | 40 |
| 80B-4550 | 45 | 50 | 50 |
| 80B-5020 | 50 | 55 | 20 |
| 80B-5030 | 50 | 55 | 30 |
| 80B-5040 | 50 | 55 | 40 |
| 80B-5050 | 50 | 55 | 50 |
