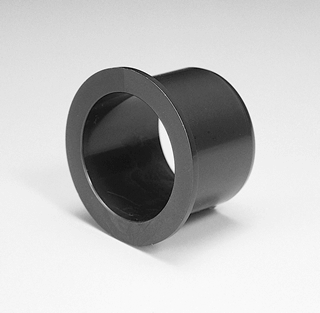

Oiles 80 Flange Bushings 80F
(Examples) I.D. is 15mm and length is 10mm.
80F - 1510

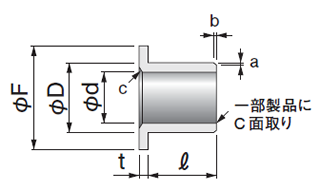

| OILES 80 Flange Bushings | I.D.: Φd | O.D.: ΦD | Flange: ΦF | Flange Thickness: t | Length: L |
|---|---|---|---|---|---|
| 80F-0202 | 2 | 4 | 6 | 1 | 2 |
| 80F-0203 | 2 | 4 | 6 | 1 | 3 |
| 80F-0204 | 2 | 4 | 6 | 1 | 4 |
| 80F-0303 | 3 | 5 | 8 | 1 | 3 |
| 80F-0304 | 3 | 5 | 8 | 1 | 4 |
| 80F-0305 | 3 | 5 | 8 | 1 | 5 |
| 80F-0306 | 3 | 5 | 8 | 1 | 6 |
| 80F-0403 | 4 | 6 | 9 | 1 | 3 |
| 80F-0404 | 4 | 6 | 9 | 1 | 4 |
| 80F-0405 | 4 | 6 | 9 | 1 | 5 |
| 80F-0406 | 4 | 6 | 9 | 1 | 6 |
| 80F-0503 | 5 | 7 | 10 | 1 | 3 |
| 80F-0504 | 5 | 7 | 10 | 1 | 4 |
| 80F-0505 | 5 | 7 | 10 | 1 | 5 |
| 80F-0506 | 5 | 7 | 10 | 1 | 6 |
| 80F-0507 | 5 | 7 | 10 | 1 | 7 |
| 80F-0603 | 6 | 8 | 12 | 1 | 3 |
| 80F-0605 | 6 | 8 | 12 | 1 | 5 |
| 80F-0606 | 6 | 8 | 12 | 1 | 6 |
| 80F-0608 | 6 | 8 | 12 | 1 | 8 |
| 80F-0610 | 6 | 8 | 12 | 1 | 10 |
| 80F-0703 | 7 | 9 | 13 | 1 | 3 |
| 80F-0705 | 7 | 9 | 13 | 1 | 5 |
| 80F-0707 | 7 | 9 | 13 | 1 | 7 |
| 80F-0710 | 7 | 9 | 13 | 1 | 10 |
| 80F-0803 | 8 | 10 | 15 | 1 | 3 |
| 80F-0805 | 8 | 10 | 15 | 1 | 5 |
| 80F-0806 | 8 | 10 | 15 | 1 | 6 |
| 80F-0808 | 8 | 10 | 15 | 1 | 8 |
| 80F-0810 | 8 | 10 | 15 | 1 | 10 |
| 80F-0812 | 8 | 10 | 15 | 1 | 12 |
| 80F-0815 | 8 | 10 | 15 | 1 | 15 |
| 80F-0903 | 9 | 11 | 16 | 1 | 3 |
| 80F-0905 | 9 | 11 | 16 | 1 | 5 |
| 80F-0906 | 9 | 11 | 16 | 1 | 6 |
| 80F-0910 | 9 | 11 | 16 | 1 | 10 |
| 80F-0912 | 9 | 11 | 16 | 1 | 12 |
| 80F-0915 | 9 | 11 | 16 | 1 | 15 |
| 80F-1003 | 10 | 12 | 18 | 1 | 3 |
| 80F-1005 | 10 | 12 | 18 | 1 | 5 |
| 80F-1006 | 10 | 12 | 18 | 1 | 6 |
| 80F-1008 | 10 | 12 | 18 | 1 | 8 |
| 80F-1010 | 10 | 12 | 18 | 1 | 10 |
| 80F-1012 | 10 | 12 | 18 | 1 | 12 |
| 80F-1015 | 10 | 12 | 18 | 1 | 15 |
| 80F-1020 | 10 | 12 | 18 | 1 | 20 |
| 80F-1206 | 12 | 14 | 20 | 1 | 6 |
| 80F-1208 | 12 | 14 | 20 | 1 | 8 |
| 80F-1210 | 12 | 14 | 20 | 1 | 10 |
| 80F-1212 | 12 | 14 | 20 | 1 | 12 |
| 80F-1215 | 12 | 14 | 20 | 1 | 15 |
| 80F-1220 | 12 | 14 | 20 | 1 | 20 |
| 80F-1410 | 14 | 16 | 22 | 1 | 10 |
| 80F-1412 | 14 | 16 | 22 | 1 | 12 |
| 80F-1415 | 14 | 16 | 22 | 1 | 15 |
| 80F-1420 | 14 | 16 | 22 | 1 | 20 |
| 80F-1510 | 15 | 17 | 23 | 1 | 10 |
| 80F-1512 | 15 | 17 | 23 | 1 | 12 |
| 80F-1515 | 15 | 17 | 23 | 1 | 15 |
| 80F-1520 | 15 | 17 | 23 | 1 | 20 |
| 80F-1525 | 15 | 17 | 23 | 1 | 25 |
| 80F-1530 | 15 | 17 | 23 | 1 | 30 |
| 80F-1610 | 16 | 18 | 24 | 1 | 10 |
| 80F-1612 | 16 | 18 | 24 | 1 | 12 |
| 80F-1615 | 16 | 18 | 24 | 1 | 15 |
| 80F-1620 | 16 | 18 | 24 | 1 | 20 |
| 80F-1625 | 16 | 18 | 24 | 1 | 25 |
| 80F-1630 | 16 | 18 | 24 | 1 | 30 |
| 80F-1810 | 18 | 20 | 26 | 1 | 10 |
| 80F-1812 | 18 | 20 | 26 | 1 | 12 |
| 80F-1815 | 18 | 20 | 26 | 1 | 15 |
| 80F-1820 | 18 | 20 | 26 | 1 | 20 |
| 80F-1825 | 18 | 20 | 26 | 1 | 25 |
| 80F-1830 | 18 | 20 | 26 | 1 | 30 |
| 80F-2010 | 20 | 23 | 31 | 1.5 | 10 |
| 80F-2012 | 20 | 23 | 31 | 1.5 | 12 |
| 80F-2015 | 20 | 23 | 31 | 1.5 | 15 |
| 80F-2020 | 20 | 23 | 31 | 1.5 | 20 |
| 80F-2025 | 20 | 23 | 31 | 1.5 | 25 |
| 80F-2030 | 20 | 23 | 31 | 1.5 | 30 |
| 80F-2210 | 22 | 25 | 33 | 1.5 | 10 |
| 80F-2215 | 22 | 25 | 33 | 1.5 | 15 |
| 80F-2220 | 22 | 25 | 33 | 1.5 | 20 |
| 80F-2225 | 22 | 25 | 33 | 1.5 | 25 |
| 80F-2230 | 22 | 25 | 33 | 1.5 | 30 |
| 80F-2510 | 25 | 28 | 36 | 1.5 | 10 |
| 80F-2512 | 25 | 28 | 36 | 1.5 | 12 |
| 80F-2515 | 25 | 28 | 36 | 1.5 | 15 |
| 80F-2520 | 25 | 28 | 36 | 1.5 | 20 |
| 80F-2525 | 25 | 28 | 36 | 1.5 | 25 |
| 80F-2530 | 25 | 28 | 36 | 1.5 | 30 |
| 80F-3010 | 30 | 34 | 42 | 2 | 10 |
| 80F-3012 | 30 | 34 | 42 | 2 | 12 |
| 80F-3020 | 30 | 34 | 42 | 2 | 20 |
| 80F-3025 | 30 | 34 | 42 | 2 | 25 |
| 80F-3030 | 30 | 34 | 42 | 2 | 30 |
| 80F-3040 | 30 | 34 | 42 | 2 | 40 |
| 80F-3220 | 32 | 36 | 46 | 2 | 20 |
| 80F-3225 | 32 | 36 | 46 | 2 | 25 |
| 80F-3230 | 32 | 36 | 46 | 2 | 30 |
| 80F-3240 | 32 | 36 | 46 | 2 | 40 |
| 80F-3510 | 35 | 39 | 49 | 2 | 10 |
| 80F-3512 | 35 | 39 | 49 | 2 | 12 |
| 80F-3520 | 35 | 39 | 49 | 2 | 20 |
| 80F-3525 | 35 | 39 | 49 | 2 | 25 |
| 80F-3530 | 35 | 39 | 49 | 2 | 30 |
| 80F-3540 | 35 | 39 | 49 | 2 | 40 |
| 80F-3820 | 38 | 42 | 52 | 2 | 20 |
| 80F-3830 | 38 | 42 | 52 | 2 | 30 |
| 80F-3840 | 38 | 42 | 52 | 2 | 40 |
| 80F-4012 | 40 | 44 | 54 | 2 | 12 |
| 80F-4020 | 40 | 44 | 54 | 2 | 20 |
| 80F-4025 | 40 | 44 | 54 | 2 | 25 |
| 80F-4030 | 40 | 44 | 54 | 2 | 30 |
| 80F-4040 | 40 | 44 | 54 | 2 | 40 |
| 80F-4050 | 40 | 44 | 54 | 2 | 50 |
| 80F-4520 | 45 | 50 | 60 | 2.5 | 20 |
| 80F-4525 | 45 | 50 | 60 | 2.5 | 25 |
| 80F-4530 | 45 | 50 | 60 | 2.5 | 30 |
| 80F-4540 | 45 | 50 | 60 | 2.5 | 40 |
| 80F-4550 | 45 | 50 | 60 | 2.5 | 50 |
| 80F-5020 | 50 | 55 | 65 | 2.5 | 20 |
| 80F-5030 | 50 | 55 | 65 | 2.5 | 30 |
| 80F-5040 | 50 | 55 | 65 | 2.5 | 40 |
| 80F-5050 | 50 | 55 | 65 | 2.5 | 50 |
