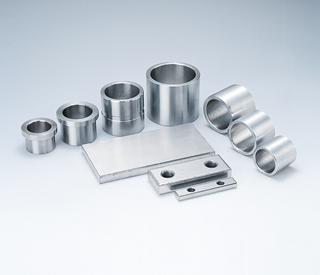

Bearings with superior wear resistance that may be used in any direction
The Oiles 2000 series are composite multi-layer bearings composed of sliding surfaces made of special sintered material and steel back metals. Solid lubricant mainly made of graphite is dispersed in the sintered layer, which is sintered and impregnated wi
| Service range | ||
|---|---|---|
| Lubrication conditions | Dry | Periodic lubrication |
| Service temperature range （℃） |
-40～+120 | -40～+120 |
| Allowable max. pressure P （N/mm2） |
24.5 | 49.0 |
| Allowable max. velocity V （m/s） |
0.50 | 1.00 |
| Allowable max. PV value （N/mm2・m/s） |
1.63 | 2.45 |
Features
- Dispersed solid lubricant allows motions in any direction and offers superior performance for minute movements.
- Serviceable without the need for lubrication.
- Features superior load resistance, speed characteristics, and wear resistance.
- Standard products and plates for additional machining are available in various sizes.
PDF Catalog
For detailed product specifications, please refer to the catalog in PDF format.
*The catalog (PDF) contains the operating range, test data, standard product dimension charts, etc.
