Compression-molded bearings with superior wear resistance for underwater use

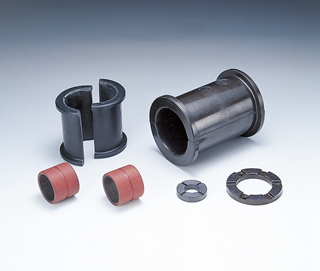

The Oiles 470 bearings are made of reinforced base material mixed with carbon fiber or woven fabric and special solid lubricant, which are formed by compression.
| Service range | |
|---|---|
| Lubrication conditions | Water lubrication |
| Service temperature range （℃） |
-40～+90 |
| Allowable max. pressure P （N/mm2） |
15 |
| Allowable max. velocity V （m/s） |
16.5 |
| Allowable max. PV value （N/mm2・m/s） |
8.15 |
Features
- Has self-lubricating performance. Demonstrates low coefficient of friction and superior wear performance especially in water, chemicals, or oil.
- Demonstrates superior wear performance and maintains stable performance even under abrasive conditions subject to soil, sand, foreign matter or rust on the mating parts.
- A multi-layer type (470-02W), which incorporates 470-02 on the sliding surface and 250 or 425 as the backing material is also available.
- The standard split metal for flocculators and bearing units are available on order.
PDF Catalog
For detailed product specifications, please refer to the catalog in PDF format.
*The catalog (PDF) contains the operating range, test data, standard product dimension charts, etc.
