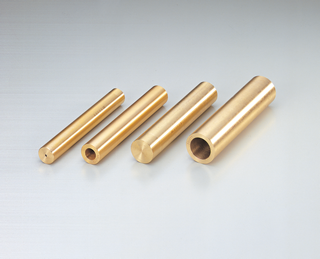

Oiles 600

Wear-resistant copper alloy bearings

This product can be processed into any desired shape.
For details, please contact the nearest sales office.
https://www.oiles.co.jp/en/corporate/office/

Products that comply with the RoHS 2 Directive
For products with this mark, all 10 substances (Pb, Hg, Cd, Cr+6, PBB, PBDE, DEHP, BBP, DBP, and DIBP) are within limits specified by the RoHS 2 Directive.
*Pb (lead) content is based on the value specified in the RoHS 2 Directive as of the end of March 2021.
Products that comply with the ELV Directive
For products with this mark, substances such as Pb, Hg, Cd,
and Cr+6 are within limits specified by the ELV Directive.

Bronze bearings requiring less lubrication

The Oiles 600 series are highly wear-resistant bearings made of cast bronze with special elements added to improve the lubricating oil retaining performance.

Service range
Lubrication conditions	Periodic lubrication	Oil lubrication
Service temperature range （℃）	-40～+150	-40～+150
Allowable max. pressure P （N/mm²）	15.0	15.0
Allowable max. velocity V （m/s）	1.65	5.00
Allowable max. PV value （N/mm²・m/s）	1.65	3.25

Features

Demonstrates wear resistance and seizure resistance in lubricated conditions.
Reduces the frequency of lubrication.
Demonstrates especially high running-in characteristics.
Materials for machining are available

PDF Catalog

For detailed product specifications, please refer to the catalog in PDF format.

*The catalog (PDF) contains the operating range, test data, standard product dimension charts, etc.
