Strong polyamide bearings that tolerate abrasive conditions

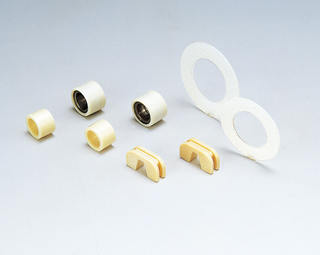

The Oiles 83 series are self-lubricating bearings made of polyamide with added lubricant and special filler.
| Service range | |
|---|---|
| Lubrication conditions | Dry |
| Service temperature range （℃） |
-40～+140 |
| Allowable max. pressure P （N/mm2） |
19.5 |
| Allowable max. velocity V （m/s） |
0.35 |
| Allowable max. PV value （N/mm2・m/s） |
2.45 |
Features
- Serviceable without the need for lubrication. Features superior wear resistance and heat resistance.
- The non-organic-fiber-filled grade products feature high strength, superior impact resistance, and low linear expansion coefficient.
- Demonstrates superior wear resistance in abrasive conditions due to foreign matter, coarse surfaces of mating parts, rust, etc.
- Injection-molded and can be made in complicated shapes. Has good mass productivity.
PDF Catalog
For detailed product specifications, please refer to the catalog in PDF format.
*The catalog (PDF) contains the operating range, test data, standard product dimension charts, etc.
