Oiles CERMET G

Sintered bearings with dispersed solid lubricant

This product can be processed into any desired shape.
For details, please contact the nearest sales office.
https://www.oiles.co.jp/en/corporate/office/

Products that comply with the RoHS 2 Directive
For products with this mark, all 10 substances (Pb, Hg, Cd, Cr+6, PBB, PBDE, DEHP, BBP, DBP, and DIBP) are within limits specified by the RoHS 2 Directive.
*Pb (lead) content is based on the value specified in the RoHS 2 Directive as of the end of March 2021.
Products that comply with the ELV Directive
For products with this mark, substances such as Pb, Hg, Cd,
and Cr+6 are within limits specified by the ELV Directive.

Bearings featuring superior heat resistance

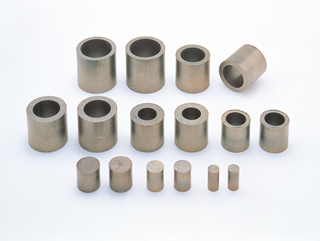

The Oiles CERMET G series are self-lubricating bearings for high temperature made of sintered alloy, in which solid lubricant mainly consisting of graphite is dispersed.

Service range
Lubrication conditions	Dry	Periodic lubrication
Service temperature range （℃）	-40～+250	-40～+150
Allowable max. pressure P （N/mm²）	10.0	10.0
Allowable max. velocity V （m/s）	0.50	0.85
Allowable max. PV value （N/mm²・m/s）	0.86	1.65

Features

Serviceable without the need for lubrication. Features superior heat resistance.
Subject to no cracks or growth even if repetitively exposed to high temperature.
Demonstrates superior performance in hot and hard-to-lubricate applications.
Materials for machining are available.

PDF Catalog

For detailed product specifications, please refer to the catalog in PDF format.

*The catalog (PDF) contains the operating range, test data, standard product dimension charts, etc.

Oiles CERMET G
