Demonstrates superior creep resistance and wear resistance under high-load conditions.

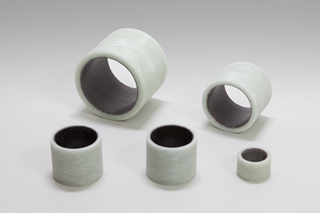

The Oiles FIBERFLON FW series incorporate polytetrafluoroethylene (PTFE) fibers and new-material fibers on the friction surfaces. The load-bearing back layer consists of highly strong epoxy resin with glass fibers.
| Service range | |
|---|---|
| Lubrication conditions | Dry |
| Service temperature range （℃） |
-40～+120 |
| Allowable max. pressure P （N/mm2） |
100 |
| Allowable max. velocity V （m/s） |
0.15 |
| Allowable max. PV value （N/mm2・m/s） |
1.20 |
Features
- Serviceable without the need for lubrication. Offers superior performance under high-load, low-speed conditions.
- Tolerates abrasive friction conditions. Also usable under fretting sliding conditions.
- Has superior chemical resistance.
- The standard products are available in various sizes.
PDF Catalog
For detailed product specifications, please refer to the catalog in PDF format.
*The catalog (PDF) contains the operating range, test data, standard product dimension charts, etc.
