Has superior coefficient of friction under high-load, lowspeed conditions.

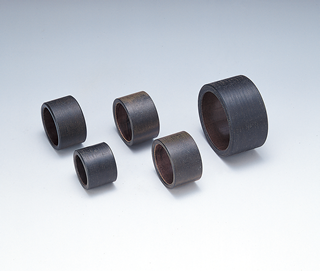

The Oiles FIBERFLON TR series are self-lubricating bearings, which consist of woven and especially plastic-processed polytetrafl uoroethylene (PTFE) fibers and other fibers on the friction surfaces so that they demonstrate the highest performance .
| Service range | |
|---|---|
| Lubrication conditions | Dry |
| Service temperature range （℃） |
-40～+120 |
| Allowable max. pressure P （N/mm2） |
100 |
| Allowable max. velocity V （m/s） |
0.15 |
| Allowable max. PV value （N/mm2・m/s） |
1.20 |
Features
- Serviceable without the need for lubrication. Offers superior performance under high-load, low-speed conditions.
- Demonstrates the low coefficient of friction of the PTFE plastic as is.
- The slide surface is made of cross-woven fabric hardened with plastic to improve cold fl ow, disadvantage of PTFE, remarkably.
- May be used in water and seawater.
PDF Catalog
For detailed product specifications, please refer to the catalog in PDF format.
*The catalog (PDF) contains the operating range, test data, standard product dimension charts, etc.
