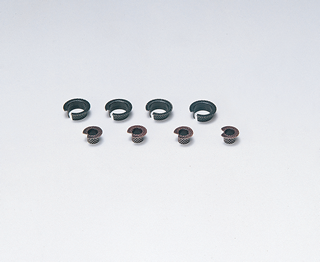

Oiles HIPLAST E

Metallic mesh polytetrafluoroethylene plastic composite bearings

For details, please contact the nearest sales office.
https://www.oiles.co.jp/en/corporate/office/

Products that comply with the RoHS 2 Directive
For products with this mark, all 10 substances (Pb, Hg, Cd, Cr+6, PBB, PBDE, DEHP, BBP, DBP, and DIBP) are within limits specified by the RoHS 2 Directive.
*Pb (lead) content is based on the value specified in the RoHS 2 Directive as of the end of March 2021.
Products that comply with the ELV Directive
For products with this mark, substances such as Pb, Hg, Cd,
and Cr+6 are within limits specified by the ELV Directive.
These products are conductive.

Conductive bearings allowing zero clearance

The Oiles HIPLAST E series are the conductive grades of the Oiles Hiplast series designed for using thin bearings when electric conductivity is required.

Service range
Lubrication conditions	Dry
Service temperature range （℃）	-50～+250
Allowable max. pressure P （N/mm²）	49.0
Allowable max. velocity V （m/s）	0.35
Allowable max. PV value （N/mm²・m/s）	1.65

Features

Electrically conductive.
Serviceable without the need for lubrication. As thin as 0.5 mm, allowing for a compact design.
Has the same functions as the Hiplast series.
Press-formed and available in intended forms.

PDF Catalog

For detailed product specifications, please refer to the catalog in PDF format.

*The catalog (PDF) contains the operating range, test data, standard product dimension charts, etc.
