As thin as 0.5 mm, allowing zero clearance.

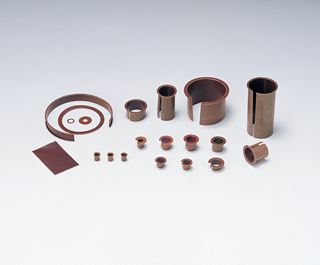

The Oiles HIPLAST series are self-lubricating bearings composed of metallic mesh base material and polytetrafl uoroethylene plastic covering with wearresistant filler.
| Service range | |
|---|---|
| Lubrication conditions | Dry |
| Service temperature range （℃） |
-50～+250 |
| Allowable max. pressure P （N/mm2） |
49.0 |
| Allowable max. velocity V （m/s） |
0.35 |
| Allowable max. PV value （N/mm2・m/s） |
1.65 |
Features
- Serviceable without the need for lubrication. Features superior load resistance and wear resistance. As thin as 0.5 mm, allowing for a compact design.
- Features superior chemical and heat resistance.
- Special mounting method unique to the Hiplast series allows zero clearance. (Backlash prevention)
- Metallic mesh offers lower thermal expansion coefficient and higher thermal conductivity than plastic bearings.
- Press-formed and available in intended forms.
PDF Catalog
For detailed product specifications, please refer to the catalog in PDF format.
*The catalog (PDF) contains the operating range, test data, standard product dimension charts, etc.
